Conector Tata Rean NYS224GT

Specificații

Informatii tehnice

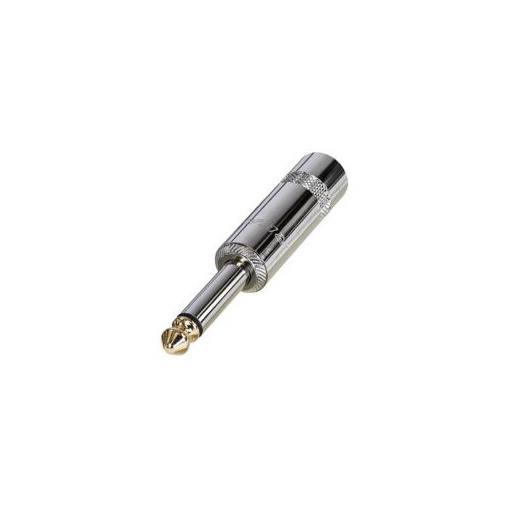

 Rean NYS224GT - mono 2 stâlpi, mâner lung turnat sub presiune, mâner argintiu, contacte cu vârf placate cu aur.

Product

• Title: NYS224GT
• Connection Type: Plug

Electrical

• Contact Resistance: ≤10mΩ
• Insulation Resistance: ≥200 MΩ(Initial)
• Dielectric Strength: 0.5 KVdc 50HZ

Mechanical

•  Insertion and Withdrawal Force: ≤60N
• Lifetime: >1,000 Mating Cycles

Material

• Tip: Brass
• Inner: Steel
• Bushing: PA66+30%GF
• Insulation: PVC
• Sleeve: Brass
• Sleeve: Zinc
• Insulation: PA66+30%GF
• Soldering Contact: Brass
• Cable Clamp: Steel
• Housing: Zinc
• Tip: Nickel Plating
• Sleeve: Nickel Plating
• Housing: Nickel Plating
• Inner: Zinc Plating
• Soldering Contact: Zinc Plating
• Cable Clamp: Zinc Plating
