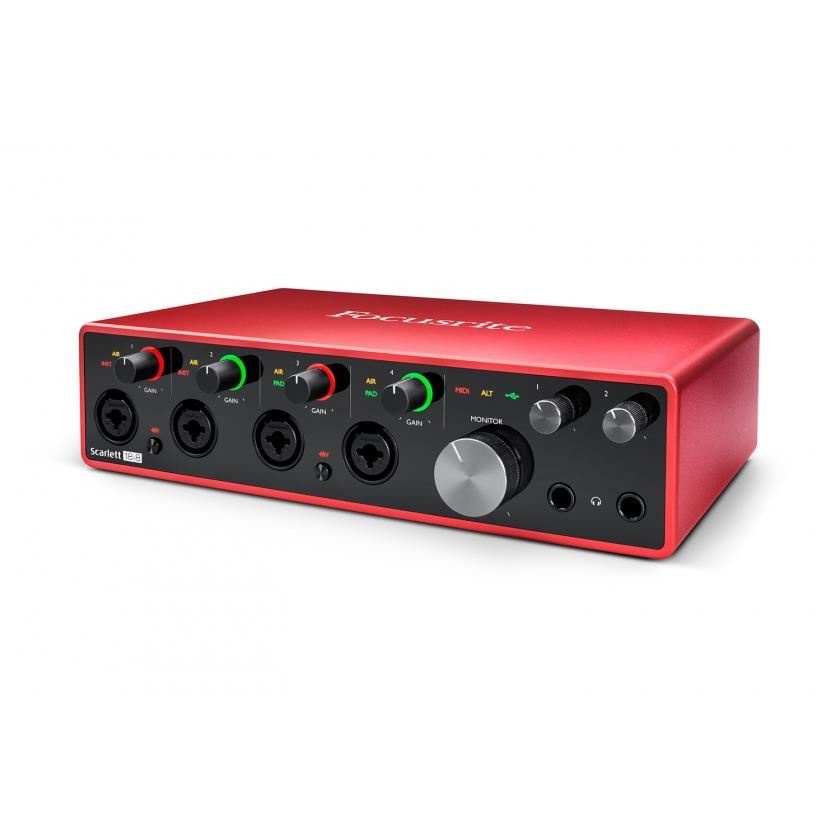

Scarlet 18i8

Specificații

Un numar mare de canale, dimensiunele compacte si multitudinea de programe audio , cu Scarlett 18i8 esti gata sa inregistrezi oriunde te afli.

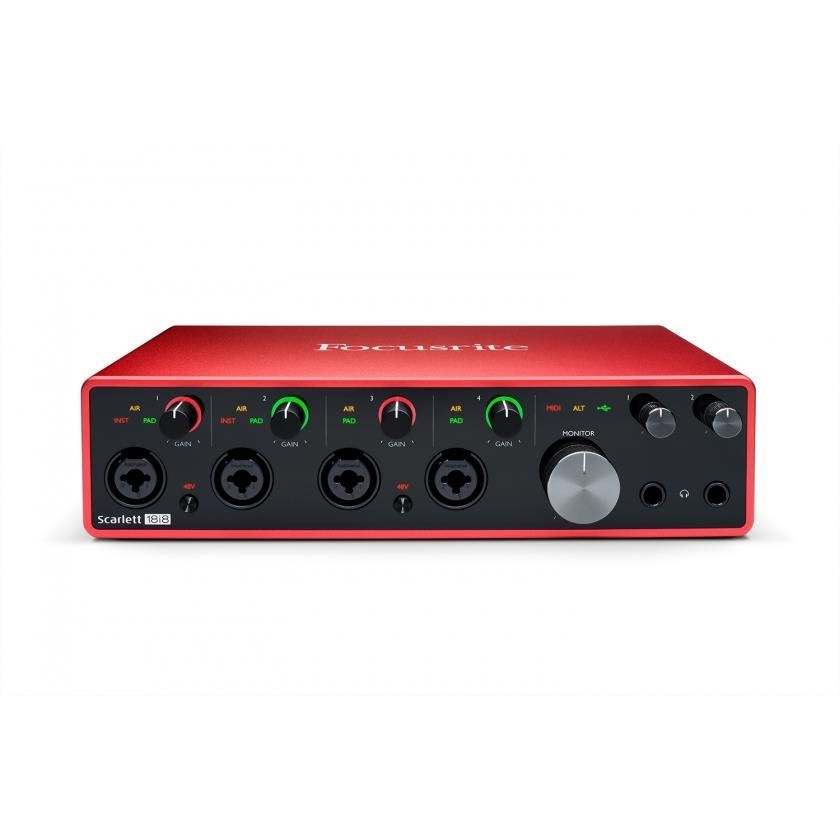

• patru dintre cele mai bune preamplificatoare de microfon din aceasta gama acum cu functia Air pentru a inregistra voci si instrumente.
• doua intrari cu headroom mare pentru chitara sau bass

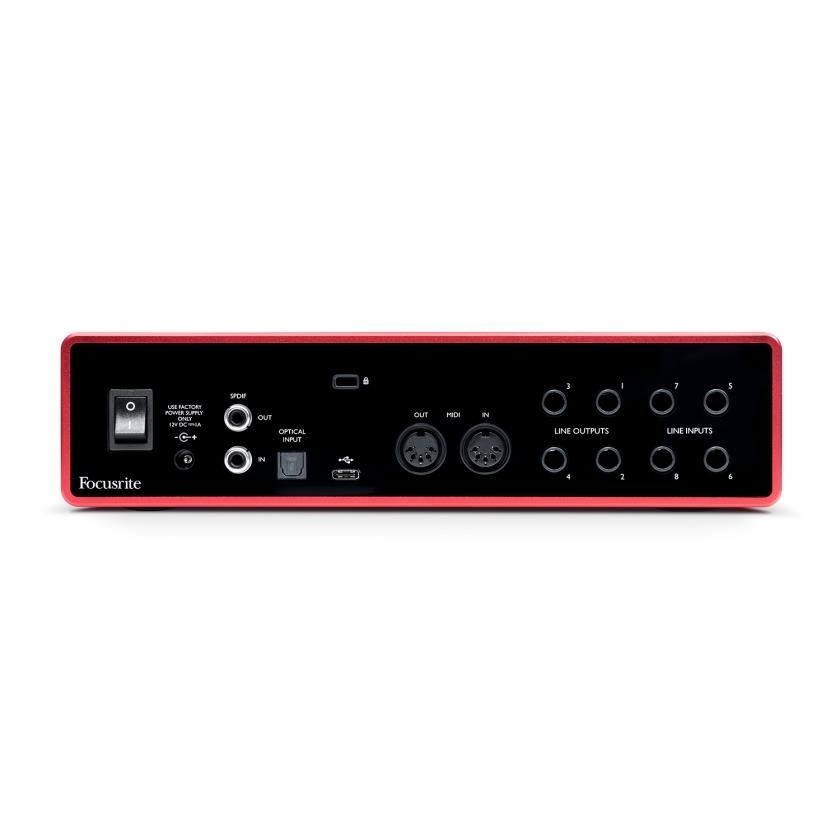

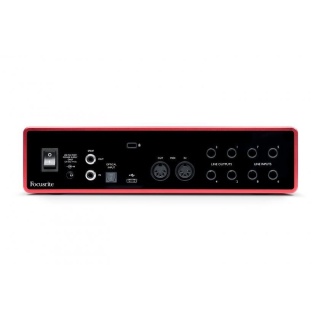

• opt intrati balansate pentru sintetizator si patru iesiri balansate pentru monitorizare si diverse rutari
• patru iesiri de monitorizare cu optiune anti-thump si comutare de boxe.

SAMPLE RATE-URI DISPONIBILE

44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz

MICROPHONE INPUTS

Frequency Response          20Hz - 20kHz ± 0.1dB

Dynamic Range                  111dB (A-weighted)

THD+N                                <0.0012%

Noise EIN                           -128dBu (A-weighted)

Maximum Input Level          9dBu (at minimum gain)

Gain Range                         56dB

Impedance                           3kΩ

LINE INPUTS 1-4 (VARIABLE GAIN)

Frequency Response                 20Hz - 20kHz ± 0.1dB

Dynamic Range                        110.5dB (A-weighted)

THD+N                                      <0.002%

Maximum Input Level                 22dBu (at minimum gain)

Gain Range                                  56dB

Impedance                                  60kΩ

LINE INPUTS 5-8 (FIXED GAIN)

Frequency Response                 20Hz - 20kHz ± 0.1dB

Dynamic Range                        110.5dB (A-weighted)

THD+N                                      <0.002%

Maximum Input Level               18dBu (at minimum gain)

Impedance                 44kΩ

INSTRUMENT INPUTS

Frequency Response                          20Hz - 20kHz ± 0.1dB

Dynamic Range                                  110dB (A-weighted)

THD+N                                                  <0.03%

Maximum Input Level                          12.5dBu (at minimum gain)

Gain Range                                          56dB

Impedance                                           1.5MΩ

LINE/MONITOR OUTPUTS

Dynamic Range (Line Outputs)                  108dB

THD+N                                                   <0.002%

Maximum Output Level (0 dBFS)                  15.5dBu

Impedance                                                   430Ω

HEADPHONE OUTPUTS

Dynamic Range                                  104dB (A-weighted)

THD+N                                                   <0.002%

Maximum Output Level                          7dBu

Impedance                                              <1Ω
