Conector BNC HD 75 Ω Neutrik NBNC75BLP9

Code : NBNC75BLP9
Compare
Product description

Conectorul BNC HD rearTwist ofera un design real de 75 Ω si este potrivit pentru aplicatii HD.

Cabluri compatibile:
Argosy Image 720, Belden 1505A (ANH), Belden 4505R, Belden 8241F, CAE HD08370LSZH, Canare L-4CFB, Clark Wire CD7559-0, Clark Wire CD7559F-0, CommScope 5565, Draka 0.8/3.7 AF, Draka 755-801, Draka 755-803, Draka 755-804, Gepco VPM2000, Proel HPC 810, Suhner S0426, Sommer 600-0451, Sommer 600-162(F), Percon VK6

Dimensiuni pridnere:
Pin: 1.6 mm (square)
Ecranaj: 6.47 mm (hex)

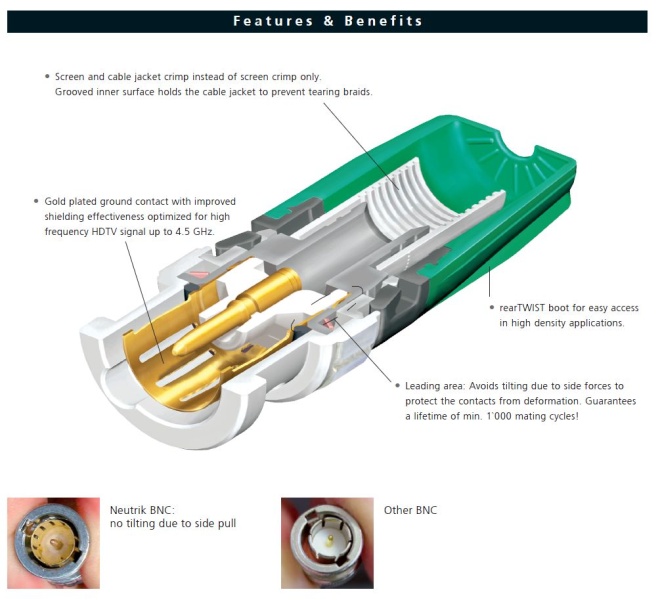

Caracteristici

  • Blocare/deblocare pe principiul "rearTwist" utilizand mansonul usor accesibil
  • Ideal pentru panouri "inghesuite" unde accesul la capatul conectorului poate fi o problema. Acesti conectori se rasucesc din spate, nu din fata.
  • Designul real de 75 Ω indeplinesc cerintele HDTV / DVD
  • Evita inclinarea datorate fortelor laterale pentru a proteja contactele de deformare. Garanteaza o dirata de viata minima de 1000 cicluri de imerechere.
  • Pinul perfect potrivit ofera feedback tactil
  • Tehnologia de prindere a ecranajului si a mansonului previne problema expunerii impletiturii la asamblarea cablului
  • Piese precise din alama pentru durabilitate crescuta

Produs
Tip conector BNC 75 Ω
Tip tata
Electric
Rezistenta contact ≤ 3 mΩ (interior)
Rezistenta contact ≤ 2 mΩ (exterior)
Rezistenta dielectrica 1,5 kVdc
Impedanta 75 Ω
Rezistenta impedanta > 5 GΩ
Voltaj <50 V
VSWR ≤1.050/>32 dB pana la 1 GHzv
  ≤1.065/>30 dB pana la 2 GHz
  ≤1.100/>26 dB pana la 3 Ghz
Mecanic
Diametru cablu 6.3 mm
Prindere cablu > 30 N (Centru)
Dimensiune prindere 6,47 Hex crimp (shield) acc. IEC 60803 (die designation E)
Dimensiune pridnere (pin) 1,6 Square crimp (pin) acc. IEC 60803 (die designation 2)
Forta de insertie < 25 N
Durata de viata > 1000 mating cycles
Sistem de blocare Bayonett
Prindere cablu Jacket crimping
Material
Contacte Alama (CuZn35Pb2), 0.2 µm AuCo (contact central)
Insertie PTFE
Carcasa Alama (CuZn39Pb3)
Placare carcasa Optalloy®
Mediu
Prindere contacte Conform IEC 60803 si IEC 60352-2
Gama temperatura -30 °C to +85 °C











Specifications
Connector type Male
For cable
